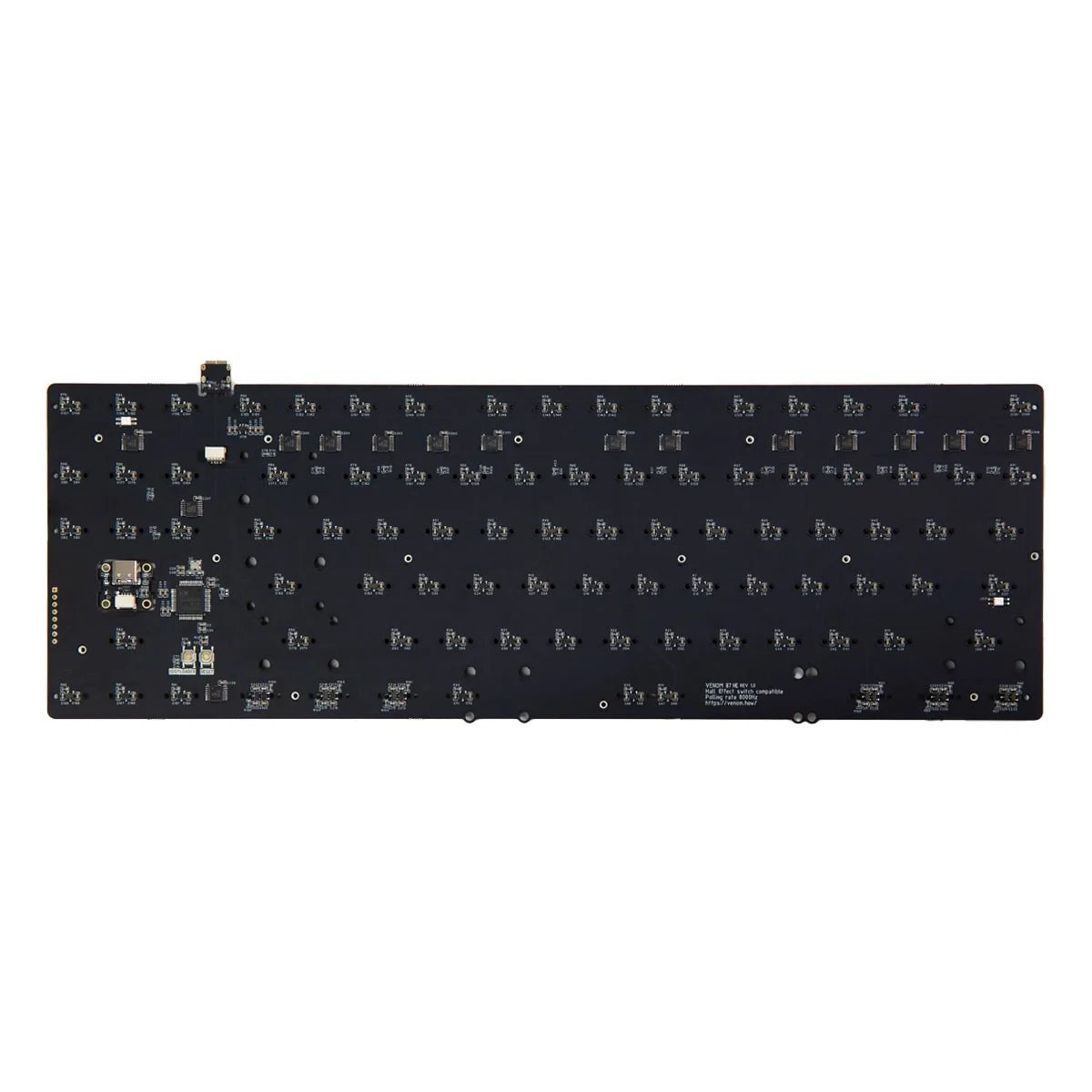

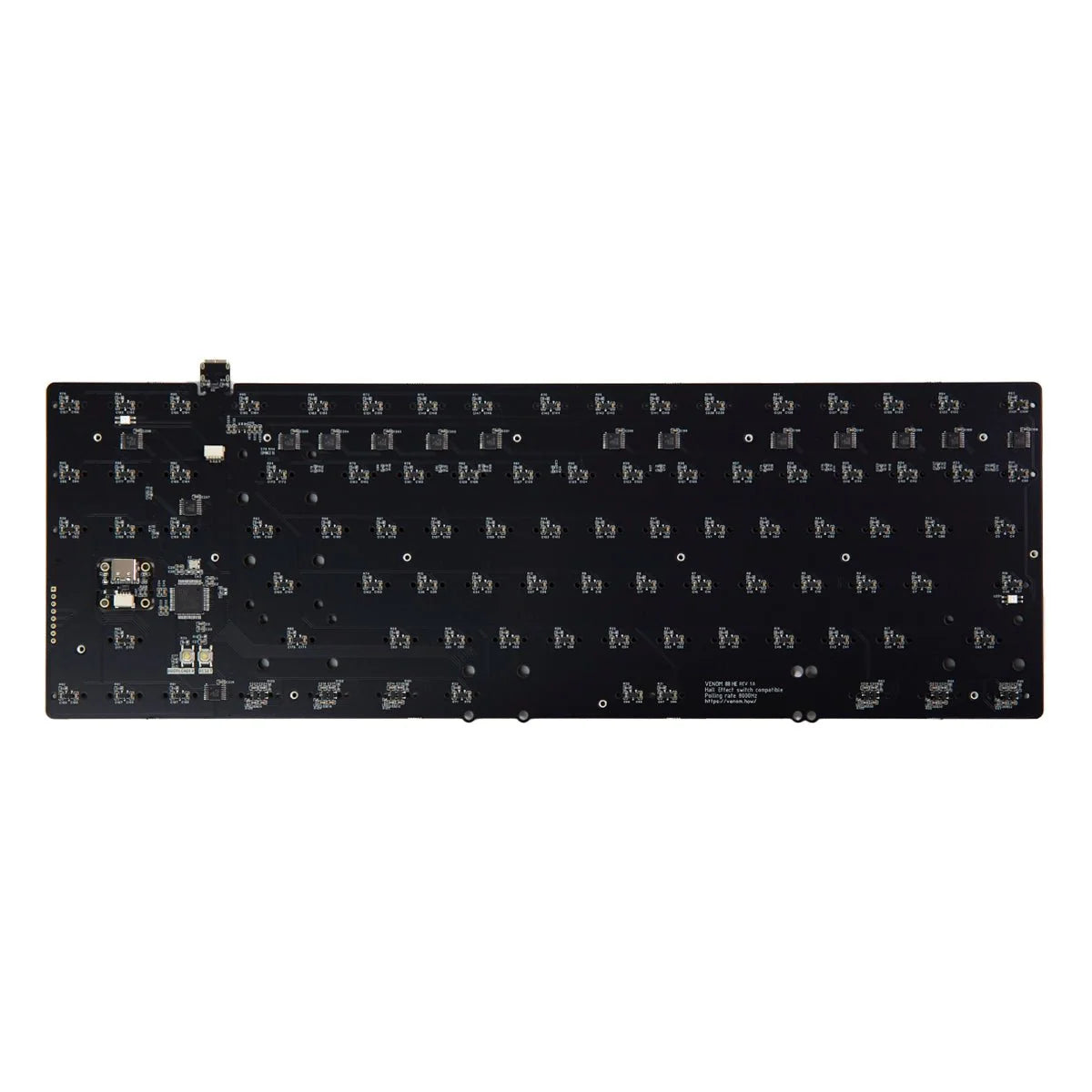

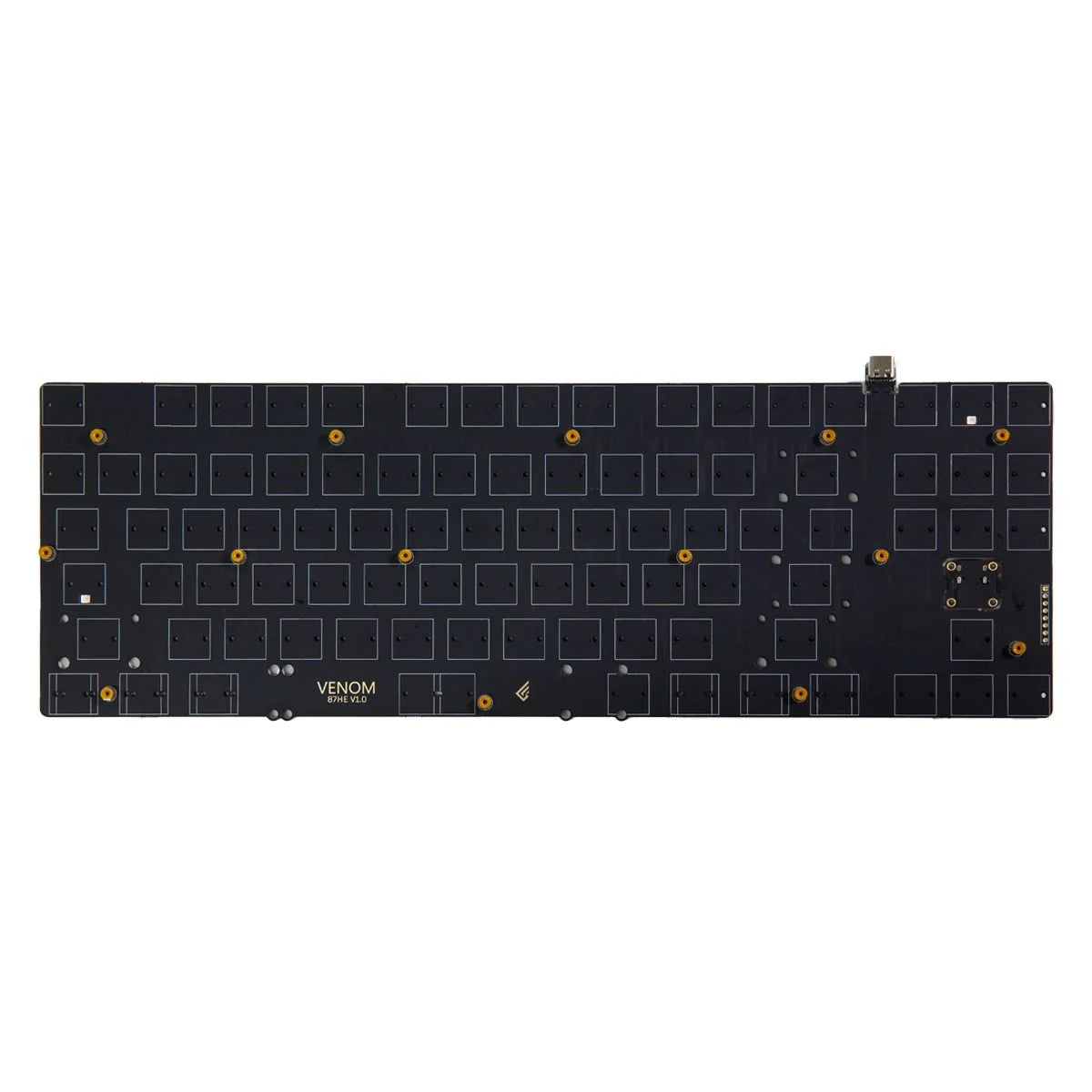

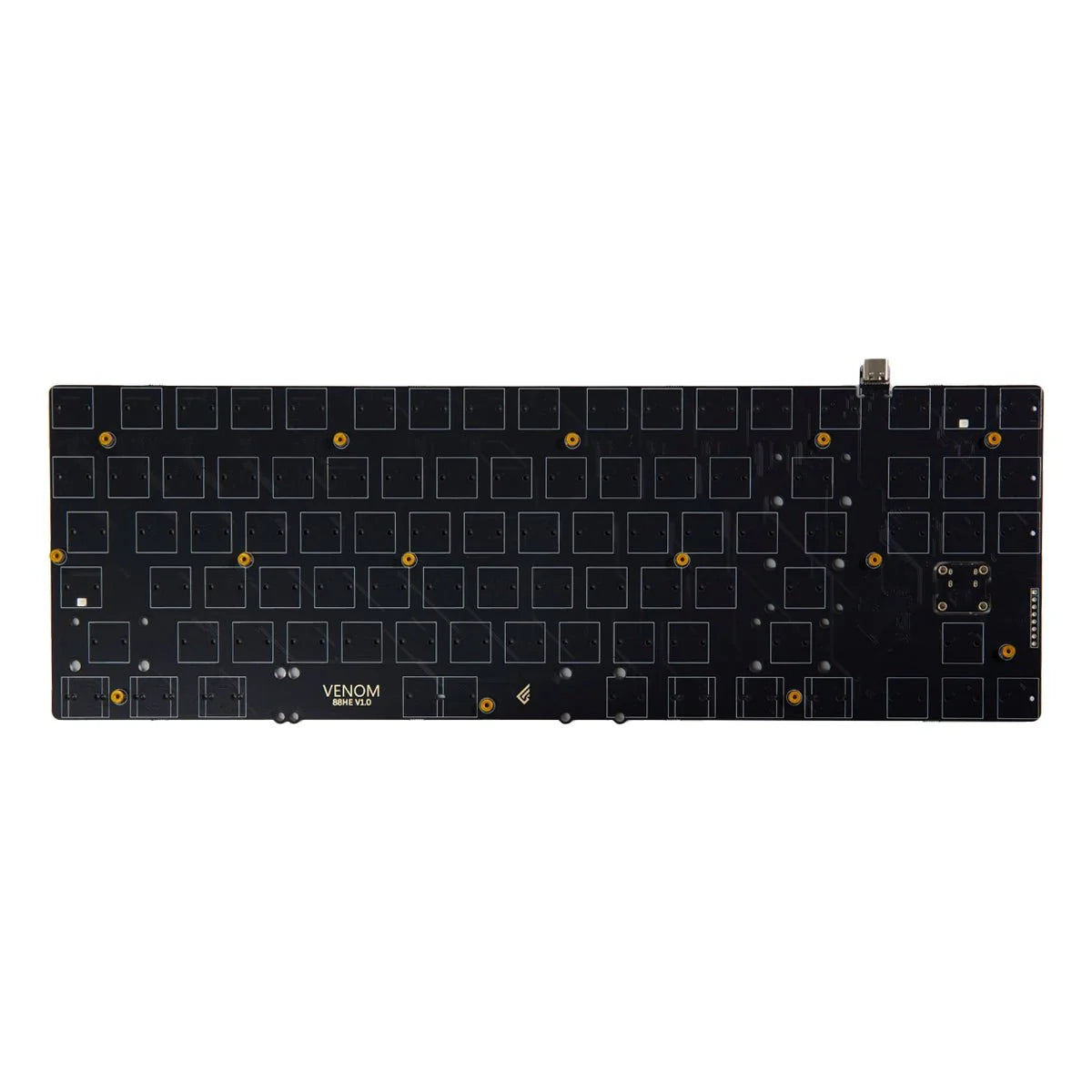

Geon Venom 80 / TKL HE PCB's are HE compatible PCB's for the Frog TKL, Glare TKL, and Tiger Lite however it follows a Hiney H87 footprint so it can be more compatible with a wider range of keyboards. Featuring Geon's proprietary HE software and supports up to an 8K polling rate for reduced latency.
Geon Venom TKL HE PCB Features:
- H87 F12 or H88 F13 TKL Layout (80%)
- Type: Hall Effect
- RISC-V32 Architecture
- Supports 8KHz polling rate / 14KHz per-key scan rate
- 0.16ms Latency
- Material: FR-4
- Thickness: 1.6mm
- Optional Daughterboard Included
-
No JST Cable and screws
- Must be removed prior to using the PCB due to possibility of circuitry interference. Please use a nipper for removal.
- Geon Firmware: Link
- Plate Files: Link
- Compatible Switches:
- Geon Raptor HE, RAW HE, Lucifer HE
- Gateron KS-20 / KS-20T, etc.
- N-pole switch, 1600gs or less at bottom magnetic force
Includes:
Note:
- Keyboard compatibility: Hiney H87c / H87nu PCB Size
- Remove yellow tape before assembling screws (screws not included)
- Once the C-type port is removed, it cannot be reapplied
- Points for stabilizer screw holes may be slightly chipped and exposed. These are still functional and will not be eligible for a refund/exchange.
